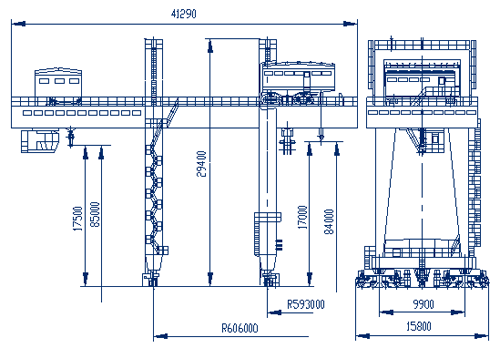

Gantry crane with lifting capacity of 500/63/5 t

Gantry crane is intended for load handling at servicing the mechanical equipment of overflow dams and water intakes of Sayano-Shushenskaya hydroelectric station.



Lifting capacity, t:
main hoist                   500/63
auxiliary hoist             5
Quantity of trolleys, nos.         2
Lifting height, m:
main hoist                   36(20)/85(67,5)
auxiliary hoist             84(67)
Lifting speed, m/min
main hoist                   0,36÷1,21;3,3÷10
auxiliary hoist             1,5÷4,95
Traveling speed, m/min
crane                                        30
trolley                                       7,2÷10,5
Supply voltage of power network, V         AC 380
