The ladles produced by Azovmash meet the up-to-date requirements to the given type of metallurgical equipment.
The capacities of the hot-metal ladles are from 50 to 350 t respectively. About 150 ladles are delivered every year by Azovmash.
Constant improvement of the design and manufacture process made it possible to develop a wide range of highly reliable and durable ladles of various type-sizes with low tare –load ratio of the ladle (0,11 — 0,16).
The ladles are delivered with slide gates and hydraulic drives of the Azovmash’s design. Upon Customer’s request the ladles can be furnished with elements for the installation and fastening of the slide gates of another modification.
Azovmash is ready to deliver the equipment for preparing, repair and servicing of the ladles during operation.

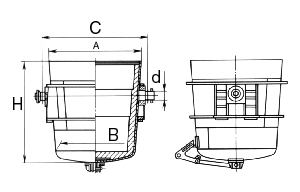

designation | Capacity, t | Main dimensions, mm | Mass, t | |||||
A | H | D | P | Metal structures | lining | Loaded ladle | ||
КЧ - 220 | 220 | 4900 | 5225 | 4245 | 3785 | 33,5 | 28 | 281 |
КЧ - 300 | 300 | 5000 | 6000 | 4400 | 3785 | 34,1 | 38,8 | 375 |
КЧ - 350 | 350 | 5500 | 6550 | 4810 | 4160 | 42,7 | 42,1 | 435 |
